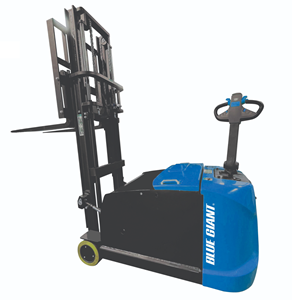

BGL30/35
The BGL30/35 Walkie Counterbalanced Stacker stacks and transports palletized loads that straddle stackers or reach trucks cannot carry and position as efficiently. A power steering system provides easy and ergonomic vehicle control.
CAPACITY
- 3,000 lbs. & 3,500 lbs. at 24” load center
LIFT HEIGHTS
- 104" (2,642 mm)
- 126" (3,200 mm)
- 157" (3,988 mm)
PERFORMANCE
- AC drive motor delivers steady acceleration and travel speeds
- 24V ZAPI travel controller supports simple and precise truck positioning
- Travel speed is reduced when forks are above basic carry height
- Electromagnetic brake resists rollback on ramps
- Pressure compensated lowering valves regulate lowering speeds
- Travel speed: 3.2mph (unloaded) and 3.0mph (under load)
ERGONOMICS
- Travel, lift, lower, and tilt functions are located in the ergonomic operator handle, which can be operated with either hand
- Wrap around hand guard, reversing switch, dual butterfly thumb controls, and horn are standard
STRUCTURAL INTEGRITY
- 24" (610 mm) load center
- Fork size: 42" (1,067 mm) standard
- 36" (914 mm) tall load backrest
- High visibility I-beam mast
