BGS-25

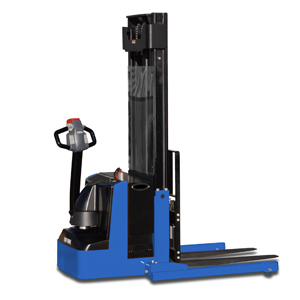

The BGS-25 Powered Walkie Stacker can transport, stack, and position 2,500 lb (1,136 kg) loads up to 157" (3,988 mm). This intermediate-duty stacker has a short turning radius, supporting full functionality even in narrow aisles and tool rooms.
CAPACITies
LIFT HEIGHts
- 106" (2,692 mm)
- 130" (3,302 mm)
- 157" (3,988 mm)
PERFORMANCE
- 24V AC drive motor
- 24V ZAPI programmable travel controller supports simple and precise truck positioning
- Creep speed control allows for easier maneuvering at low speeds in tight places
- Travel speed remains constant relative to throttle position regardless of the load
- Regenerative braking kicks in when the forks are 12" (305 mm) above height
- Travel speed: 3.4mph (unloaded) and 3.1mph (under load)
ERGONOMICS
- Travel, lift, lower, and tilt functions are located in the ergonomic operator handle, which can be operated with either hand
- Hand grips fit the operator's hand comfortably, reducing fatigue
STRUCTURAL INTEGRITY
- Bolt-on high-visibility mast
- Fork size: 42" (1,067 mm) standard
- 3" (76 mm) adjustable straddle legs support easy positioning in racked aisles
- 224 AH battery package (4-6 volt, maintenance-free AGM batteries), complete with automatic 25AMP / 110VAC plug-in internal charger
- I-beam construction
- Heavy-duty two-piece head cover protects major components from impact damage
