EPT-33-4W

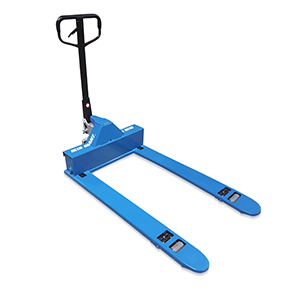

The EPT-33-4W Manual Pallet Truck is designed to handle four-way pallets and offers a 220-degree steer arc for excellent maneuverability in tight locations. Each unit comes with a polyurethane steer wheel and steel load rollers for easy travel.

CAPACITY

• 3,300 lb (1,497 kg)

PERFORMANCE

• 200-degree operational arc
• Eight full strokes to reach maximum elevated height of 5.5" (138 mm)
• 2" (51 mm) lowered fork height
• Polyurethane steer wheel and steel load rollers
• Features a powder coat paint and robotic welds throughout
• Washdown compatible

ERGONOMICS

• Control handle has three position (raise/neutral/lower) fingertip
  control. Ergonomically designed and free of pinch points.
• Comfort grip handle
• Strong spring returns the handle to an upright position once released

STRUCTURAL INTEGRITY

• Fork size: 33" x 48" (838 mm x 1,219 mm) standard
• Tapered forks and entry and exit rollers support smooth pallet handling
• Galvanized hydraulic pump with overload relief valve
• Braking can be actuated by both hand and foot-controlled release
• Heavy-duty frame is constructed from a one-piece formed channel
• Tapered forks and entry and exit rollers allow for smooth pallet
  handling
• Adjustable push rods make roller height adjustment easier
• Cast-iron hangers for greater strength and longevity
• Helper rollers for easy exit and entry of pallets
• Hangers are constructed of cast iron for greater strength and
  longevity

RECOMMENDED APPLICATIONS

• Any location where four-way palletized loads need to be transported
