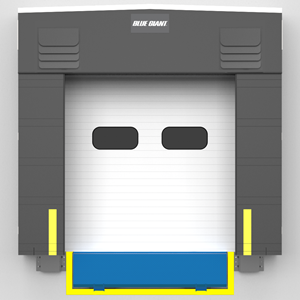

Foam Frame Shelter
Foam Frame Shelters create a tight seal between the building and the back of a vehicle. The soft side pads absorb misalignments from off-center trailers and quickly return to their original shape, maintaining the shelter’s integrity over time. The sloped head frame helps protect the dock area from weather elements by diverting rain off the sides, reducing the need for additional canopies.
Designed to accommodate 10' wide x 10.5' high door openings, highway trailers and tailgate trucks, the BG600 provides full, unobstructed access to the trailer interior. The head curtain, side curtains, and foam side frames fit snugly against the trailer, ensuring weatherproof protection.
Standard units seal trailers of 12' to 13' 6" high on a typical 4' dock height.
PRODUCT HIGHLIGHTS
- Curtains are made from TearResist™ Vinyl and include fiberglass supports to complete the seal and maintain continual pressure against the trailer.
- Durable head frame made from pressure-treated lumber covered with UV treated polyethylene sheeting, measuring 138" wide, with an 18" projection and a 36" head curtain
- Two vertical foam side pads designed to withstand trailer impact
- Reinforced wear flaps on the head curtain
- Reinforced double layer on bottom of side curtains
- Replaceable vertical curtains, enabling easy maintenance
- Replaceable foam bottom draft pads seal the lower gap between truck and building
- High-visibility yellow guide stripe
- Galvanized mounting brackets and hardware
